The JKQ series gas springs are suitable for use in various situations where angle and height adjustment is required. Under the manipulation, the piston rod can be stopped at any position. YK series gas springs have flexible operation, stable operation, and reliability. Design and manufacture according to user requirements.

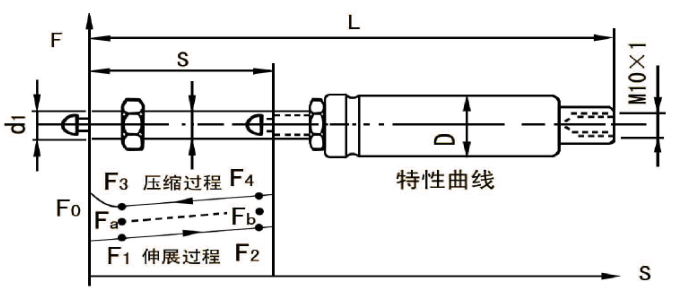

| Model | Installment Center Distance L(mm) | Travel Range S(mm) | Cylinder Outer Diameter D(mm) | Piston Rod Diameter D1(mm) | Rib Diameter D1(mm) | Range Of Lifting Force (kgf) |
| Lockable Type JKQ | 225 | 60 | 22 | 10 | M10 X 1 | 300-700 |
| 210 | 50 | |||||
| 200 | 40 | |||||
| 130 | 30 | |||||
| 760 | 280 | 28 | 10 | M10 X 1 | 300-900 | |
| 175 | 50 | |||||
| 170 | 42 | |||||
| 155 | 40 | |||||
| 128 | 28 |
